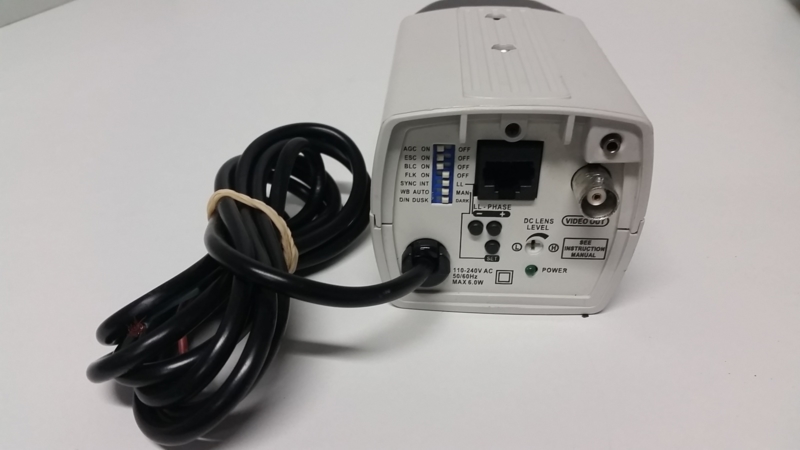

Bewakingscamera Pelco CC3770H-7X
De CC3770 series camera is een dag/nacht, kleuren/zwart-wit camera van ultra hoge resolutie met een 1/3-inch CCD imager. De camera heeft een direct drive/auto iris lens connector en adjustable back focus. De camera accepteerd C en CS lenzen.
Zonder lens
| Signal System | NTSC |
| Image Sensor | 1/3" Color IT CCD |
| Resolution | 540 Lines (570 lines in B/W mode) |
| Number of Pixels | 768 x 494 |
| Lens | Lens not included (accepts C/CS mount lenses) |
| Iris Operation | DC/video drive (auto-sensing, 4-pin connector) |
| Minimum Illumination | 0.7 Lux (0.09 lux B/W mode) |
| Signal-to-Noise Ratio | >50dB |
| Controls | Vertical Phase: Adjustable +/-180° Automatic Gain Control: On/off switchable Electronic Shutter Control: On/off switchable Backlight Compensation: On/off switchable Flickerless Mode: On/off switchable Internal Sync: On/off switchable Auto White Balance: On/off switchable D/N Dusk Dark: On/off switchable Signal Processing Digital: Signal Processing (DSP) Gamma Correction: 0.45 |
| Sync | AC line lock/internal |
| Video Output | BNC x1 UTP x1 (RJ45-10) Additional service video output connector |
| Audio Output | No |
| Motion Detection | No |
| Alarm I/O | No |
| Control Ports | No |
| Power Requirements | 110-240v ac |
| Power Consumption | 6W (8W during filter switching) |
| Operating Temperature | 14 - 122°F (-10 ~+50°C) |
| Dimensions (WxHxD) | 2.9 x 2.6 x 5" (7.2 x 6.7 x 12.8cm) |
| Weight | 0.8 lbs (0.4 kg) |
Models CC3770H-6 High resolution (480 color/530 b-w TV lines), SuperHAD™ CCD, 0.7 lux at F1.2 in color mode, 0.09 lux at F1.2 in black-white mode, NTSC, 12 VDC/24 VAC
CC3770H-6X High resolution (480 color/530 b-w TV lines), SuperHAD™ CCD, 0.7 lux at F1.2 in color mode, 0.09 lux at F1.2 in black-white mode, PAL, 12 VDC/24 VAC
CC3770H-7 High resolution (480 color/530 b-w TV lines), SuperHAD™ CCD, 0.7 lux at F1.2 in color mode, 0.09 lux at F1.2 in black-white mode, NTSC, 110-240 VAC
CC3770H-7X High resolution (480 color/530 b-w TV lines), SuperHAD™ CCD, 0.7 lux at F1.2 in color mode, 0.09 lux at F1.2 in black-white mode, PAL, 110-240 VAC
(Indien anders aangegeven, wordt product geleverd zonder drivers of software.Software e.o. drivers indien niet plug en play via website fabrikant.Afbeeldingen en kleur kunnen afwijken).
Conditie : REFURBISHED/GETEST
Garantie : 90 DAYS.
Reclames: Binnen 14 dagen.
Staat:
Gebruikt: een voorwerp dat eerder is gebruikt. Het product kan sommige tekenen van cosmetische slijtage hebben, maar is volledig operationeel en functioneert zoals bedoeld. Dit item kan een vloermodel of winkelretour zijn dat gebruikt is.
Condition:
Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used
| Specificatie | Omschrijving |
|---|---|
| Gewicht | 1 Kg |
