Planet 24+4G Managed Switch (SGSW-2840)
| Model nummer: | SGSW-2840 |

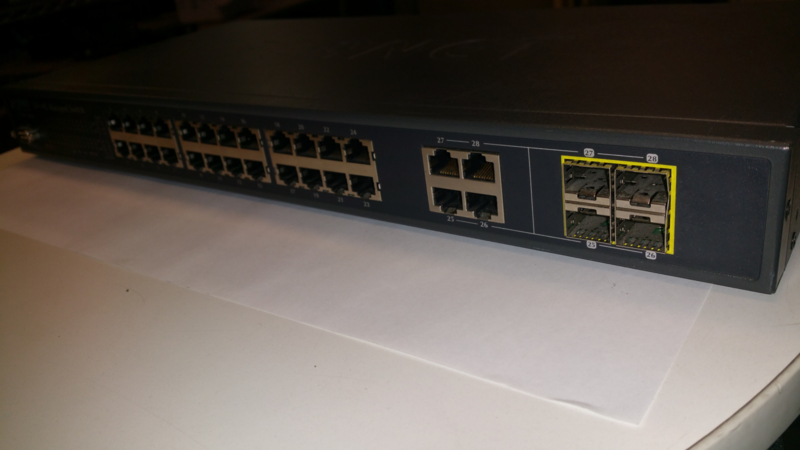

| Ports: | 24 x 10/100Mbps |
| SFP/ mini-GBIC Slots: | 4 1000Base-SX / LX / BX |
| Switch architecture: | store and Forward |
| Switch Fabric: | 12.8Gbps / non blocking |
| Switch Throughtput: | 9.52Mpps @64Byes |
| Address Table: | 8k entries |
| Share Data Bluffer: | 2 Mbits |
| Flow Control: | Back pressure for half-Duplex IEEE 802.3x Pause Frame for Full-Duplex |
| LED: | Power,Power alarm,FAN alarm, Link / Act and PoE In-Use per port |
| Reset Button: | < 5 sec: System reboot > 5 sec: Factory Default |

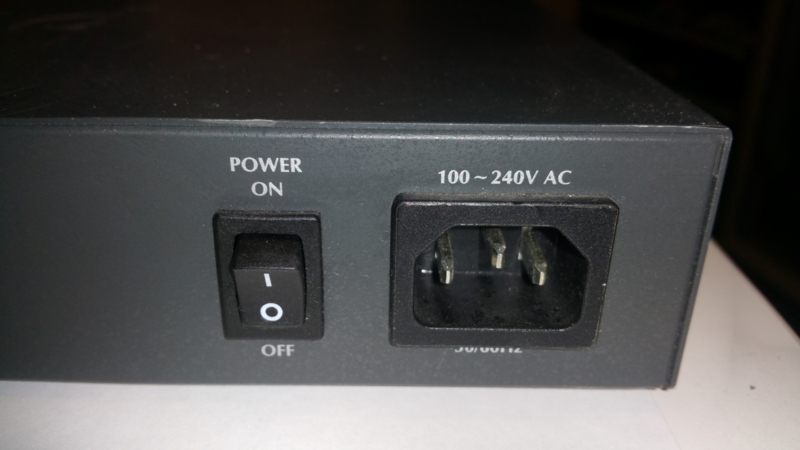

| Power: | AC 100-240V, 50/60Hz |
| PoE Standard: | IEEE 802.3af |
| PoE Power Supply Type: | End-Span |
| PoE Power Output: | Per Port 48V DC, 350mA, Max 15.4 watts |
