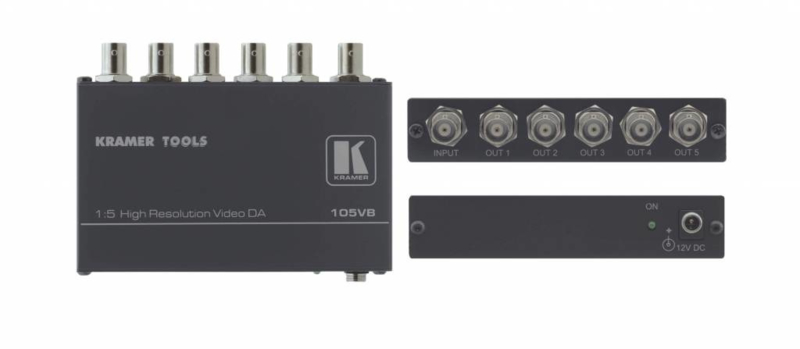

Kramer 105VB 1:5 Composite Video Distribution Amplifier / BNC connectors
PRODUCT OVERVIEW

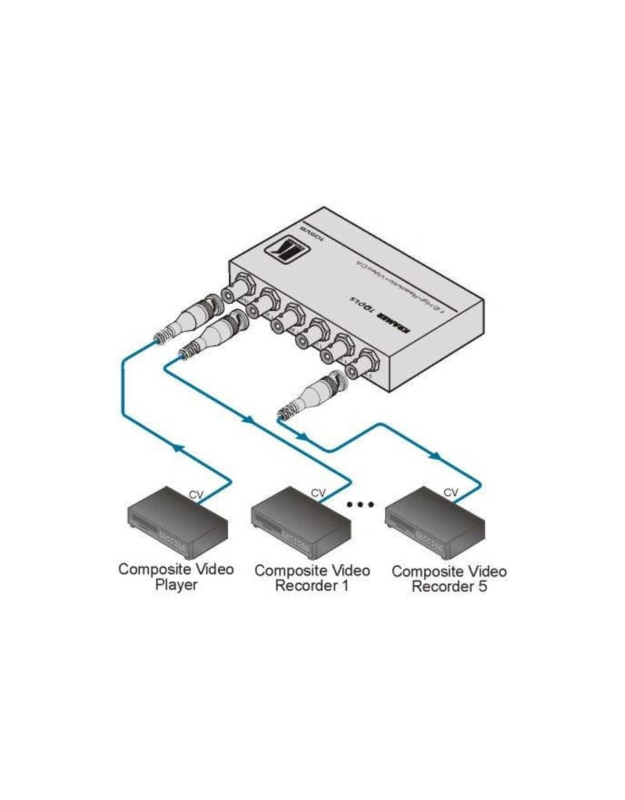

The 105VB is a high-performance distribution amplifier for composite video signals. It takes one input, provides correct buffering and isolation and distributes the signal to five identical outputs.
- Bandwidth — 400MHz (–3dB).
- Connectors — BNC (105V has RCA).
- Level (Gain) Control.
- Compact Kramer TOOLS™ — 3 units can be rack mounted side–by–side in a 1U rack space with the recommended rack adapter.
APPLICATIONS
- Video duplication studios.
- Any professional display system requiring an identical picture on several monitors.
- CCTV and home theater use.
- Rental and staging applications.
SPECIFICATIONS

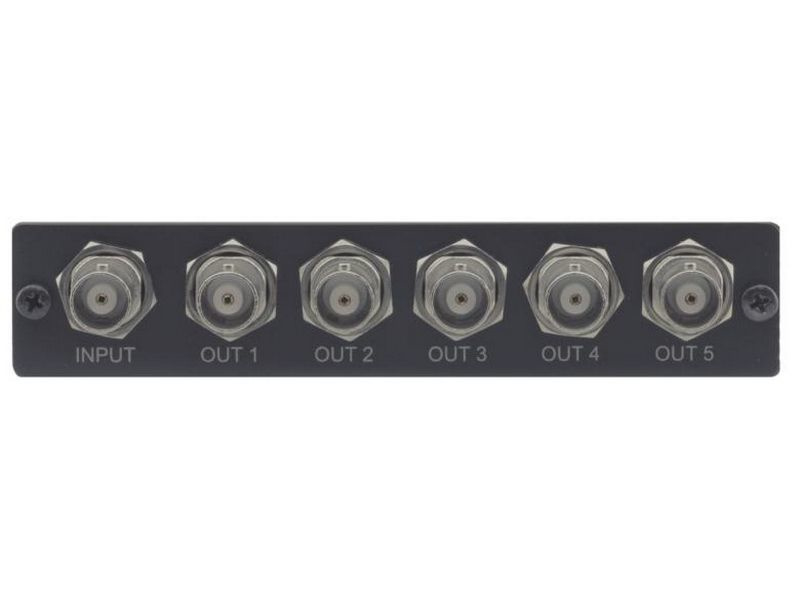

INPUT 1 composite video, 1Vpp/75Ω on a BNC connector
OUTPUTS 5 composite video, 1Vpp/75Ω on BNC connectors
MAX. VIDEO OUTPUT 2Vpp
VIDEO BANDWIDTH (-3DB) 400MHz
DIFF. GAIN 0.1%
DIFF. PHASE 0.1Deg
K-FACTOR <0.05%
S/N RATIO 80dB
CONTROL Up to +6dB
COUPLING AC
POWER CONSUMPTION 12V DC, 100mA
INCLUDED ACCESSORIES Power supply, mounting bracket
PRODUCT DIMENSION 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT 0.2kg (0.5lbs) approx.
SHIPPING DIMENSION 23.20cm x 12.00cm x 8.90cm (9.13" x 4.72" x 3.50" ) W, D, H
SHIPPING WEIGHT 0.7kg (1.5lbs) approx.
(Indien anders aangegeven, wordt product geleverd zonder drivers of software.
Software e.o. drivers indien niet plug en play via website fabrikant.
Afbeeldingen en kleur kunnen afwijken).
Conditie : REFURBISHED/GETEST
Garantie : 90 DAYS.
Reclames: Binnen 14 dagen.
Staat:
Gebruikt: een voorwerp dat eerder is gebruikt. Het product kan sommige tekenen van cosmetische slijtage hebben, maar is volledig operationeel en functioneert zoals bedoeld. Dit item kan een vloermodel of winkelretour zijn dat gebruikt is.
Condition:
Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used
